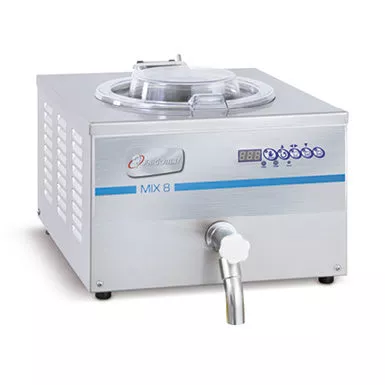

Frigomat Mix 8 Heater

The Frigomat Mix 8 Heater allows operators to convert their Frigomat horizontal batch freezer in to a combination freezer.

Specifically designed for professionals who require an easy to use and extremely reliable heater to hot process ice cream and gelato base mixes. The hot process improves the mix stability, produces a rich, creamy textured product and maintains the quality of the frozen product in the display case.

Manufactured in Italy by Frigomat to ensure that European equipment quality and technology standards are met.

Features of the Frigomat Mix 8 Heater include:

Variable Batch Size – Production from 3 Kg to 8 Kg per cycle.

Heat Cycles – Three quick selection push buttons;

  • Automatic 85°C Cycle
  • Automatic 65°C Cycle
  • Semi-automatic Cycle with temperature adjustment from 30°C to 90°C with hold timer which can be set to any time up to 10 hours.

Bain-Marie Heating System – The mix tank is heated using a glycol bain-marie system which ensures even heat distribution preventing ‘hot spots’.

Automatic Functions with IES System – The patented IES system reduces the phenomenon of thermal inertia protecting the mix with precise temperature control whilst preventing unnecessary energy usage.

Stainless-Steel Tank – The tank is manufactured from stainless steel with a seamless design for easy cleaning. The internal dip probe ensures accurate temperature control. The spout position allows for easy dispense into containers or directly into the freezing barrel of a horizontal batch freezer. The clear polycarbonate cover allows the operator to easily monitor the process.

Easy Cleaning – The dispense spout has an independently controlled rinse function allowing it to be flushed after any product has been dispensed. The external rinse hose and simple disassembly makes cleaning quick and straightforward.

Compact – The Mix 8 is designed to be located on top of the Titan Series of horizontal batch freezers, converting them into a ‘combination freezer’. Alternatively, its small footprint makes it ideal for small production kitchens.

Power requirements: 16amp Single Phase Only

Dimensions: 431 (w) x 483 (d) x 338 (h) mm

Cooling: Air Cooled Only

Capacity: 3 – 8 litres per Batch
