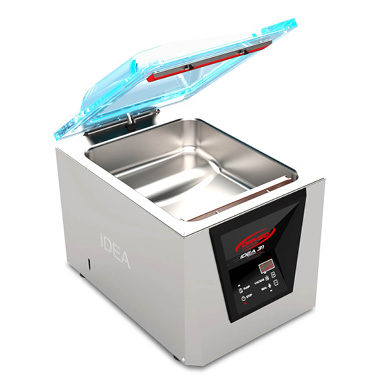

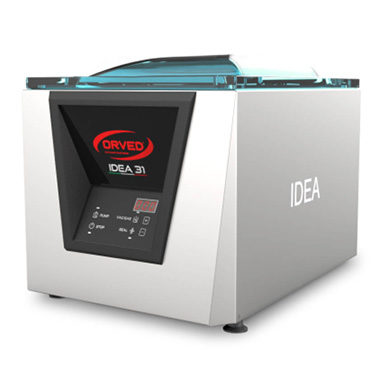

Orved Idea 31 Vacuum Packing Machine

The Orved Idea 31 vacuum packing machine features a smart vacuum sensor to ensure 98% vacuum every time and inert gas injection to preserve delicate items.

The  Idea 31 model of the Idea line catches the eye for cutting-edge design. The machine is easy of use and its versatility make it an ideal work tool in every professional kitchen.

The Idea 31 is made entirely of AISI304 stainless steel for durability and corrosion resistance. It stands out for its digital control panel, the absolute vacuum sensor, inert gas injection and a “Degas” series cycle.

Easy maintenance and cleaning are facilitated by the front opening of the machine body and the brilliant, rounded surfaces of the vacuum chamber.

The Idea 31 vac pack machine is ideal for: restaurants, pastry shops, butchers, delicatessens and bars.

Features of the Idea 31 include:

• Oil lubricated rotary vane vacuum pump, nominal speed 12 m³/h

• Vacuum level control through high precision absolute-type vacuum sensor, which does not require calibration

• Maximum vacuum 99,8% (2 millibar)

• 310 mm sealing bar, easily removable for cleaning

• Brilliant stainless steel vacuum chamber with constant thickness, easy to clean being free of edges and receptacles

• Standard inert gas injection with 2 injection nozzles with “Gasplus” system, which allows to reach values up to 90% of inert gas for products extremely sensitive to crushing

• Waterproof control panel, resistant to liquids, humidity, dirt and dust

• 10 editable user programs

• 1 cycle for vacuum containers

• 1 deaeration “chef” cycle (Degas)

• “H2Out” pump oil dehumidification cycle

• Resettable oil change alarm

• Menu accessible to technical assistance for parameter adjustment and reading of cycles carried out

• High-thickness blued PMMA (Plexiglass) lid with polished and rounded edges; opens automatically at the end of the cycle

• Lowering system of the lid at the end of the work in the rest position by releasing the rear gas spring, which allows to release the tension on the gas spring and on the lid

• Access for easy maintenance through front opening of the casing

• Standard “Easy” accessory for external vacuum in embossed bags

• 2 PE-filling plates for product adjustment and cycle speed up.

Optional extras include:

• Bags for storage, cooking and “cook & chill”; embossed bags

• Stainless steel cart with castors and shelf

• Inclined stainless steel plate for liquid packing

• Suction device for external containers

Technical Specifications:

• Bodywork – Stainless steel

• Vacuum pump – DVP 12mc/h – BUSCH 10mc/h

• Dimensions – 415 x 603 x 460 h mm

• Vacuum chamber dimensions – 429 x 338 x 195 h mm

• Weight – 46.3 kg

• Voltage – 230v/50Hz/1Ph – 700w

• Max bag dimensions – 300 x 350 mm

• Sealing bar  – 310 mm

• Max vacuum level – 2 mbar

• Inert gas injection (requires additional gas bottle & regulator – NOT sold by Taylor UK)
